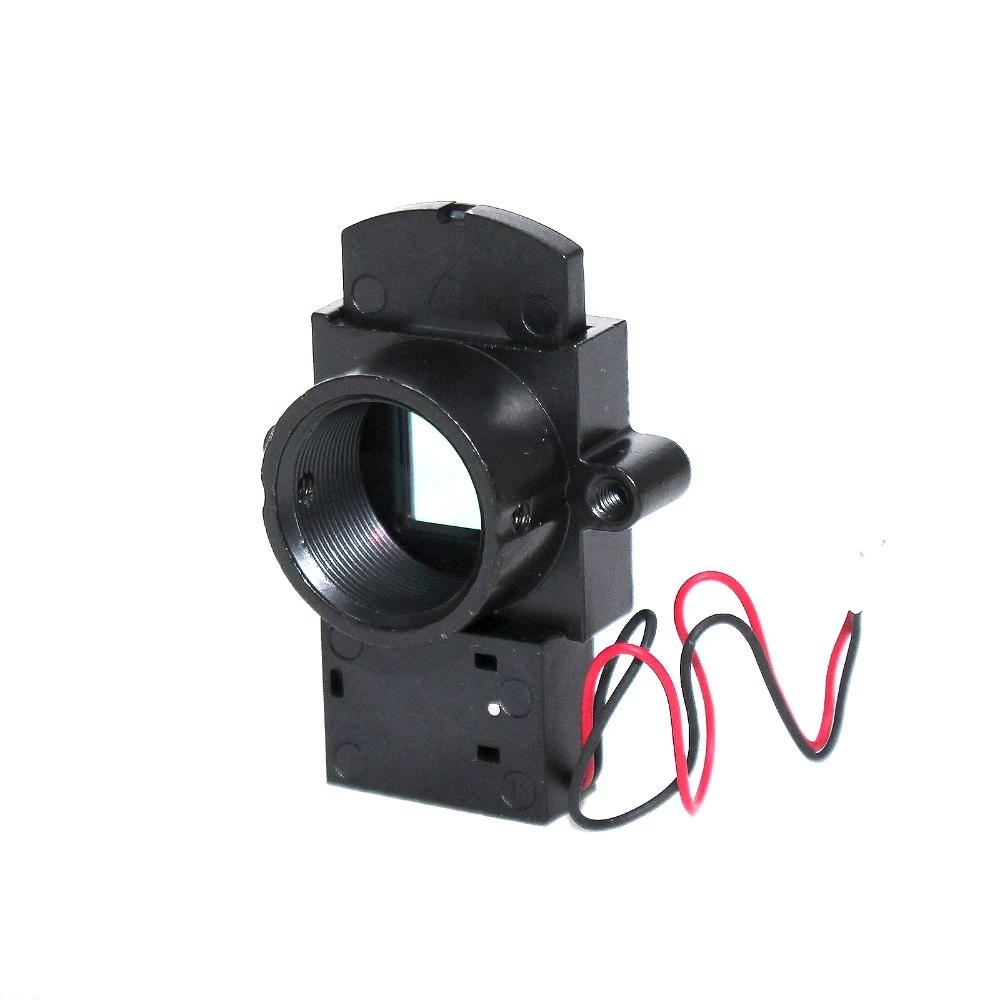

Metal 5.0 Megapixel M12 IR Cut Filter Dual ICR Double Switcher
IR-CUT 20mm Lens Mount Holder for 5MP IP AHD CVI TVI CCTV Camera
Performance parameters
This product is suitable for network cameras, millions of HD
cameras, infrared cameras, bolts and other cameras, let it cut off
Or through, the name is: dual filter switcher
The main role and function:
Corrects daytime polarization problems and improves nighttime
brightness
working principle:
IR-CUT Dual Filter Switcher consists of: One IR Cut Filter and One
Fully Permeable Filter + Electromagnetic Structure
The bracket's internal screws are shallow, suitable for
(2.5mm, 2.8mm, 3.7mm, 6mm, 8mm, 10mm, 12mm, 15mm, 18mm, 25mm, 30mm
lenses on the market!)
5MP Optical double filter switcher IR CUT
1. Product material: lower cover PC plastic + lens mount Metal
2. Coil impedance: 60±5Ω (at room temperature 25°C)
3. Drive voltage: Operating voltage: 4-12V
Drive pulse signal time: 100ms
4. Inductance: 430uH±5%
5. Actuation direction, posture: the red wire is connected to the
positive voltage, the black wire is connected to the negative
voltage, and the product is switched to the infrared cut filter
Light film (used during the day), on the contrary, the product is
switched to the white film (night use) direction, posture: side,
front, back (all-round test does not move, incomplete, interference
can not)
6. Checker IR-CUT test board/set voltage: 4V/set drive pulse signal
time: 100ms±10ms
7. Actuation mode Adopt DC voltage circuit to control magnetic
rotary magnetic valve
8. Static energy retention Product retains power even when no power
is applied
9. Normal temperature and humidity standard Temperature: +25°C±5°C,
humidity 65%±20%
10. Magnetic induction 1000Gs ± 10%, temperature 120 °C ± 5 °C
11. Terminal White, 2Pin*1.25mm, Insertion Force 0.5Kg
Package: 1PCS IR CUT
IR CUT Function:
1. Fixed daytime color cast problems, enhancing the brightness at
night.
IR-CUT filter switch automatically according to external light
along with the strength of automatic switching,
making the image to achieve the best results. That is, during the
day or night,
the dual filter can automatically switch filters, therefore,
whether in the next day or night,
can get the best imaging results.
2. According to the instruction automatic switch infrared cut-off
and the full spectrum glass,
day and night switch, automatic positioning,
in order to achieve infrared end filter work during the day time,
sunshine is vivid, restore the true color. Full spectrum glass work
at night,
and increase low illumination, night vision is very clear.
3. Use on the camera board, to modify the problem of partial color,
out of focus,
let video images do not lose focus, unbiased color and excellent
resolution.
4. To filter the hard light to make the picture color soft, to
accieve human eyes visual color.
With IR CUT Without IR CUT
With IR CUT Without IR CUT
