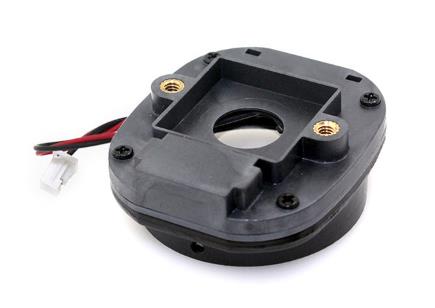

HD IR-cut infrared cut CS lens Mount Double Filter for HD CCTV IP Camera, Metal and Plastic optional, 20mm hole spacing

Performance parameters

Product material:Plastic

Driving voltage:4.8-12V

Driving current:66-200mA

Coil impedance:60Ω ± 5% (20℃ Temp)

Driving time:<60ms

Filter thickness:0.145mm, 0.21mm, 0.3mm optional

Filter coating:Filter coating with IR film and AR film.

Switching life:50 Million times

Adapter lens:CS mount lens

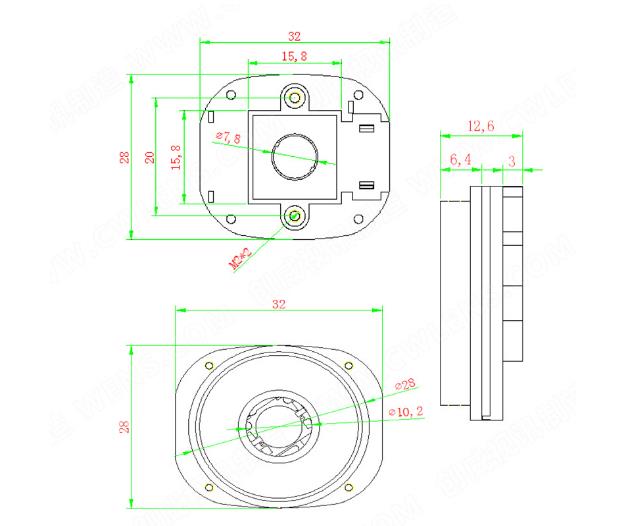

Outline dimension:32mm*28mm*13.2mm

Window hole:Φ7.8mm

Fixed hole spacing:20mm

Lead out line:Optional length

Working temperature:-20℃~80℃

Product characteristics

The positive polarity is red and black are negative, polarity reverse order is red and blue negative.

The red filter requirements in the center before product package.

High temperature resistance and no deformation.

Provide different matching schemes according to the customer's requirement.

With IR CUT Without IR CUT

With IR CUT Without IR CUT
